Ⅰ Brief Introduction

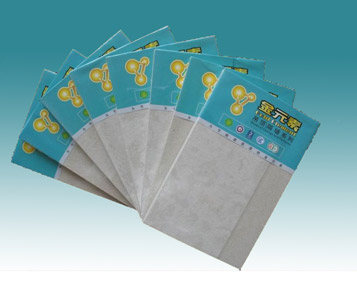

Gold Element Board is a kind of high-tech manufactured and environmental protective board which contains no asbestos or formaldehyde. It’s a kind of high-tech products manufactured from inorganic and organic substances such as primary wood fiber, silicate cement, high purity quartz sand, high quality lime powder, water and several additives, which are mixed and accurately proportionate by computer then formed under high temperature and pressure condition and steam curing. The board is mainly composed of a chemical substance of Tobermorite with stable crystal. It has good properties like fireproof, anti-moisture, anti-corrosion, noise and sound-absorbing, heat-insulated, lightweight, high impact, easy installation and so on. The excellent performance makes Gold Element Board widely used in all building fields of fireproof and heat-insulated system. Such as ceiling, partition, exterior wall, ventilation ducting, pipe fireproof protection, etc. Places like shopping mall, hotel, real estate, office building, commercial building, theater, hospital, school, stadium, airport, station, tunnel, research institution, laboratory, industry building, house decoration and so on.
Ⅱ Standard Specification
2440×1220×4～18mm
Ⅲ Specification Tolerance
| Product Name |
Gold Element Calcium Silicate Board |
| Length and width |
2440 × 1220mm |
| Thickness |
5、6、7、8、9、10、12、15、18 |
|
| Thickness Tolerance |
| ≤ 9 |
± 0.3mm |
| 9~15 |
± 0.5mm |
| >15 |
± 0.6mm |
| Length Tolerance |
| <1200 |
± 2mm |
| 1200~2400 |
± 3mm |
| >2400 |
± 5mm |
| Width Tolerance |
| 900~1200 |
± 3mm |
| >1200 |
± 4mm |
| Flatness Tolerance |
| Not sanding side≤2mm；Sanding side≤0. 5mm |
|
Ⅳ Physical Performance Parameters
| Item |
Index |
Unit |
| Density |
1.18~1.26 |
g/cm3 |
| Thermal Conductivity |
≤0.25 |
W/m·k |
| Moisture Content |
≤10 |
% |
| Moisture Movement |
≤0.25 |
% |
| Heat Shrinkage |
≤0.50 |
% |
| Incombustibility |
Accord with GB8624-2006 standard
National A1 noncombustible building material
|
/ |
| Bending Strength |
≥Ⅲ |
Grade |
Cross and Parallel
Strength Ratio |
≥58 |
% |
|
|
Ⅴ Gold Element Board Application-Instance Picture
1.Gold Element Board Application of Ceiling

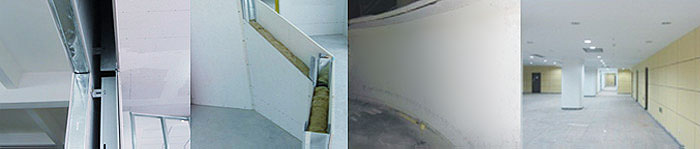

2.Gold Element Board Application of Partition
3.Gold Element Board Application of Furniture

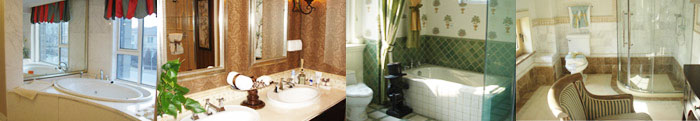

4. Gold Element Board Application in Kitchen and Toilet
